AGB Concealed Adjustable Multiaxial Hinge ECLIPSE 3.2

Clear
SKU: ECLIPSE 3.2 Categories: ,

Description

AGB Concealed Adjustable Multiaxial Hinge ECLIPSE 3.2

Sold : each

Availability

3-6 weeks from date of order

Product Information

Usage: Commercial and residential doorsets

Weight Rating

40kg – 2 Hinges

60kg – 3 Hinges

Additional Information

  • Ideal ever for aluminium frames, thanks to the 4mm thickness of the hinge fastening
  • Completely invisible thanks to reduced dimensions

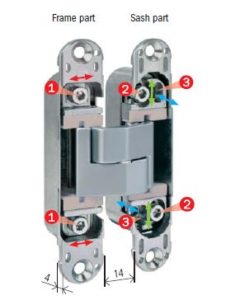

  • Three adjustments completely independent using a unique 3mm allen key:
    • pressure adjustment +1 mm (1)
    • vertical adjustment + 2mm (2)
    • horizontal adjustment + 1,5mm (3)
  • Suitable for wooden / aluminium doors
  • Max opening angle 180°
  • Max extension 14mm
  • Suitable for use with flush doors with rebate
  • Suitable for use with flush doors without rebate
  • Suitable for use with Aluminium flush doors
  • Fire rating : EN 1634 – 30 minutes (Italian test)
  • Covers manufactured from Aluminium
