Krona Koblenz Kubica Adjustable Concealed Multiaxial Hinges K5080

Clear
SKU: K.5080 Categories: ,

Description

Krona Koblenz Kubica Adjustable Concealed Multiaxial Hinges K5080

Sold : each

Availability

3-6 weeks from date of order

Bronze / Brushed Bronze / Black / Satin Gold are special order finishes – get in touch to discus your needs

Product Information

Usage: Commercial and residential doorsets

Weight Rating

80kg – 2 Hinges

Material

Zamak

Mininimum Door Thickness

40mm

Fire Rating

30 minutes

Additional Information

A concealed hinge made of highly resistant zamak for flush doors with wooden, steel and aluminium frame. CE marked, load capacity up to 80kg with 2 hinges fitted. 180 degree opening angle with the minimumdoor thickness of 40mm. Wear-resistant bushing, lubrication/maintenance not required. Reversible for right and left hand doors.

3D-adjustable, all adjustments are independent, tool aided and self loading.

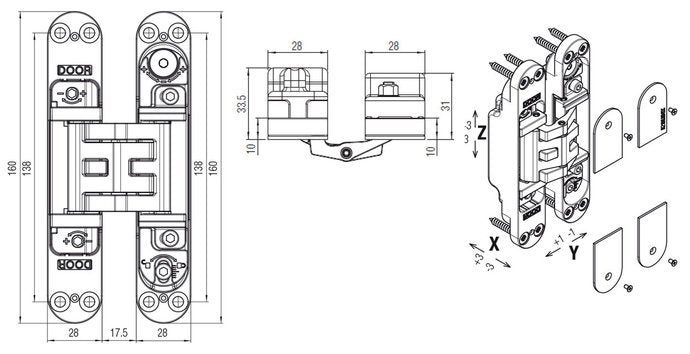

Adjustments: horizontal +/- 3,0mm vertical +/-3,0mm, depth +/- 1,0mm

Cover caps are supplied with this product

A overhead door closer can be used with this product
