Krona Koblenz Kubica Hybrid Adjustable Concealed Multiaxial Hinges K6300

Krona Koblenz Kubica Hybrid Adjustable Concealed Multiaxial Hinges K6300

Sold : each

Availability

3-6 weeks from date of order

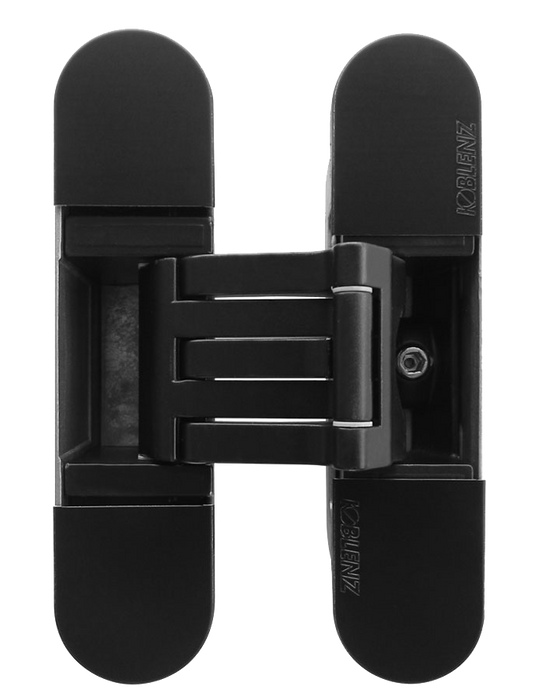

Black is a special order finish - please get in touch to discuss your needs

Product Information

Usage: Commercial and residential doorsets

Weight Rating

60kg - 3 Hinges

Material

Zamak

Mininimum Door Thickness

40mm

Fire Rating

30 Minutes

Additional Information

A concealed hinge made of highly resistant zamak for flush offset doors with architrave overlap up to 13mm and wooden, steel and aluminium frame. Load capacity up to 60kg with 3 hinges fitted. 180 degree opening angle with the minimumdoor thickness of 45mm. Wear-resistant bushing, lubrication/maintenance not required. Reversible for right and left hand doors.

3D-adjustable, all adjustments are independent, tool aided and self loading.

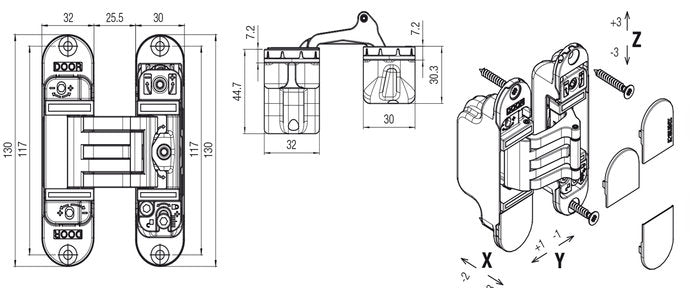

Adjustments: horizontal +/- 3,0/ -2,0 mm, vertical +/- 3,0mm, depth +/- 1,0mm

Cover caps are supplied with this product
