Krona Koblenz Kubi7 Twist Hybrid Adjustable Concealed Multiaxial Hinges K2000 C/W Self Closing System

Clear
SKU: K2000 Categories: ,

Description

Krona Koblenz Kubi7 Twist Hybrid Adjustable Concealed Multiaxial Hinges K2000 C/W Self Closing System

Sold : each

Availability

3-6 weeks from date of order

Hinge with intergrated self-closing system

Product Information

Usage: Commercial and residential doorsets

Weight Rating

60kg – 3 Hinges

Material

Zamak

Minimum Door Thickness

40mm

Additional Information

A concealed hinge for flush doors with self closing function for wooden, steel and aluminium frames. Load capacity up to 60 kg with 3 hinges, 180° opening angle with the minimum door thickness of 40mm. Wear-resistant bushings, lubrication/maintenance not required, reversible for right- and left-hand doors RH/LH.

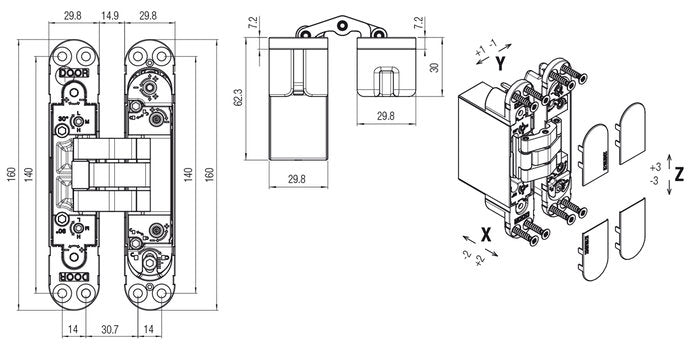

 3D-adjustable, all adjustments are indipendent, tool-aided and self-loading. Adjustments: horizontal + 2,0/- 2,0 mm, vertical +/- 3,0 mm, depth+/- 1,0 mm. Finishes..





Additional information

Brand

Finish

,

Style
