AGB Concealed Adjustable Multiaxial Hinge ECLIPSE 3.2

AGB Concealed Adjustable Multiaxial Hinge ECLIPSE 3.2

Sold : each

Availability

3-6 weeks from date of order

Product Information

Usage: Commercial and residential doorsets

Weight Rating

40kg - 2 Hinges

60kg - 3 Hinges

Additional Information

• Ideal ever for aluminium frames, thanks to the 4mm thickness of the hinge fastening

• Completely invisible thanks to reduced dimensions

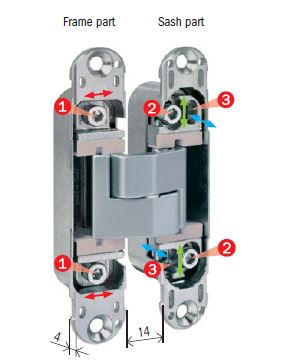

• Three adjustments completely independent using a unique 3mm allen key:
  • pressure adjustment +1 mm (1)

  • vertical adjustment + 2mm (2)
  • horizontal adjustment + 1,5mm (3)
• Suitable for wooden / aluminium doors
• Max opening angle 180°
• Max extension 14mm
• Suitable for use with flush doors with rebate
• Suitable for use with flush doors without rebate
• Suitable for use with Aluminium flush doors
• Fire rating : EN 1634 - 30 minutes (Italian test)
• Covers manufactured from Aluminium
