Frelan Hardware

Product Information

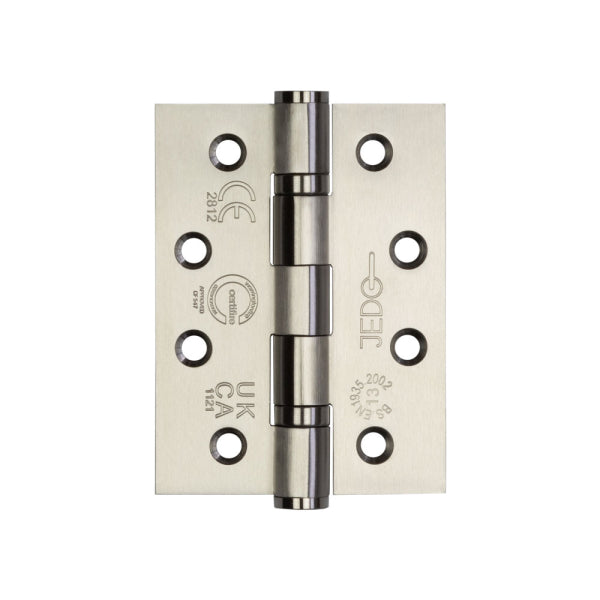

The Frelan J9533SSS Ball Bearing Hinge delivers heavy duty performance in Grade 201 Stainless Steel.

With FD30/60 fire rating, Certifire approval and a 120KG door weight capacity (3 Hinges) it's ideal for busy commercial interiors.

• Type: Ball Bearing Hinge
• Material Grade: 201 Stainless Steel
• Mechanical Cycles: 200,000
• Max Door Weight: 120KG (3 Hinges)
• Fire Rating: FD30/60
• Hinge Grade: 13
• Corrosion Grade: 4
• Mechanical Warranty: 10 Years
• Use: Internal : Residential / Commercial
• UKCA / CE

Dimensions

• Height: 102mm
• Width: 76mm
• Knuckle: 14.5mm
• Thickness: 3mm

To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 1 & GRA 1.2)
