Product Information

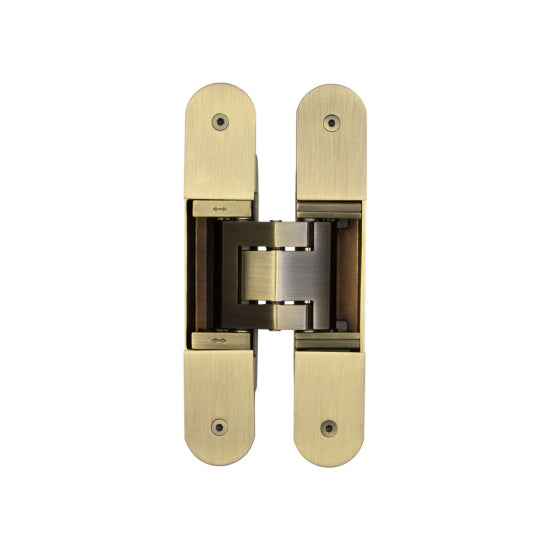

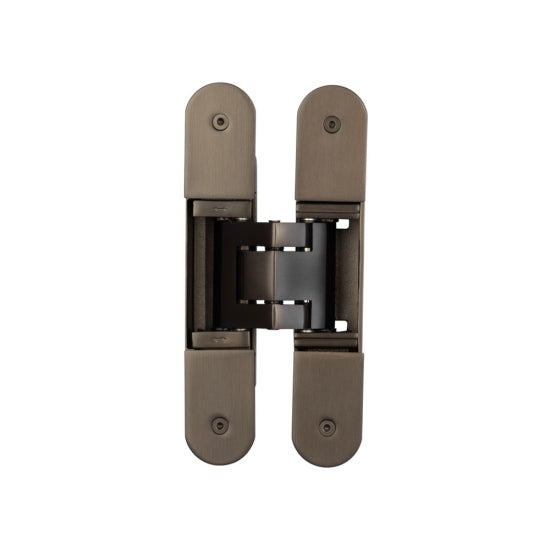

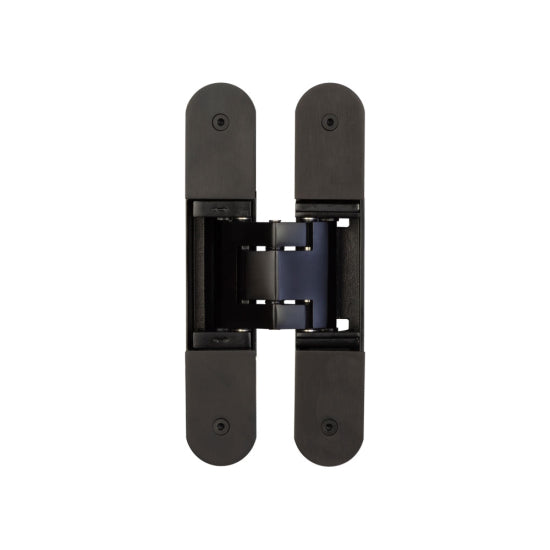

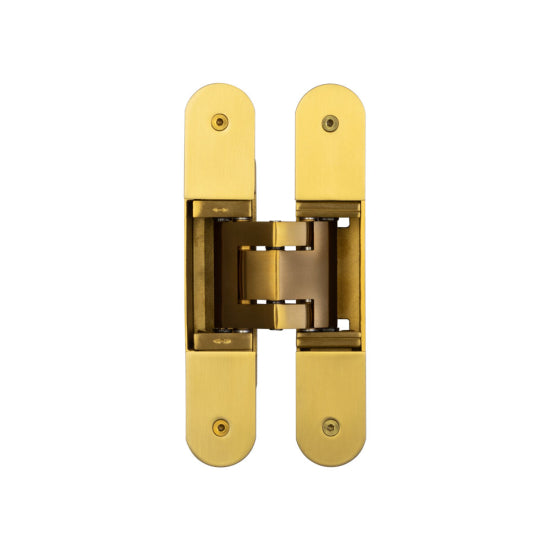

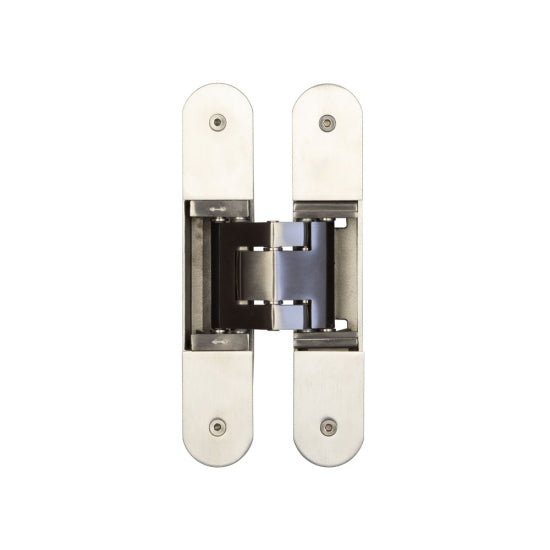

The Ghost Concealed Hinge offers a premium, fully hidden solution for internal residential and commercial doors.

Designed for strength, smooth operation, and a flush finish, it supports heavy duty applications while maintaining a sleek appearance.

Fully 3D adjustable for precise alignment during installation.

• Suitable for: Flush, unrebated quality timber doors
• £D Adjustable: Height, depth and lateral movement
• Material Grade: 304g Stainless Steel
• Concealed Fixings: Removable Cover Plates
• Fire Rated: FD60 w/2mm Graphite Flexifire (Sold Separately)
• Door Weight: Up to 120KG when using 3 Hinges
• Maintenance Free
• Fixings: 2 Allen Keys. 8 No. Wood Screws & 4 No. Cover Plates
• Suitable for: Internal Residential & Commercial
• Mechanical Warranty: 5 Years

Dimensions

• Size: 160mm
• Overall Size: 160 x 31.5 x 76.5mm
• Projection: 7.5mm
• Fixing Centres: 138mm
• Thickness: 7mm
• Suitable Door Thickness: 35m-54mm
