Frelan Hardware

Product Information

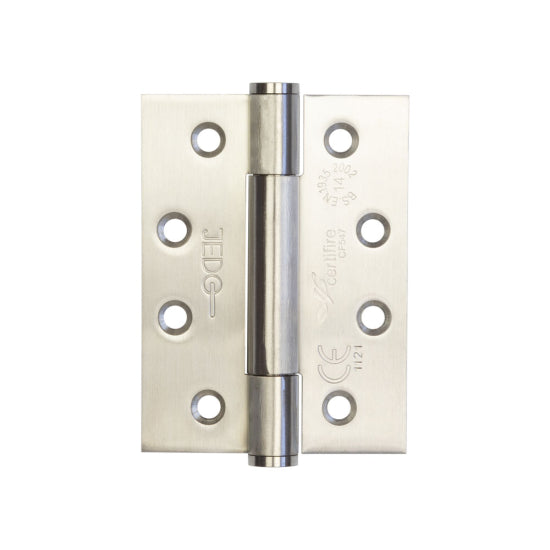

The Frelan J9400 Concealed Bearing Hinge is a heavy duty hinge designed for demanding internal doors, supporting up to 160KG using 3 hinges.

Manufactured from Grade 201 Stainless Steel, it offers FD30/60 fire rating and Certifire approval, making it ideal for commercial installations.

• Type: Concealed Bearing Hinge
• Material Grade: 201 Stainless Steel
• Max Door Weight: 160KG (3 Hinges)
• Fire Rating: FD30/60
• Certifire
• Hinge Grade: 14
• Corrosion Grade: 4
• Standards: BS EN 1935
• Mechanical Warranty: 10 Years
• Use: Internal, Residential & Commercial

Dimensions:

• Height: 102mm
• Width: 76mm
• Knuckle: 14.5mm
• Thickness: 3mm

Note: Fire tested when used with intumescent hinge pads.

3-5 Working Day Delivery
