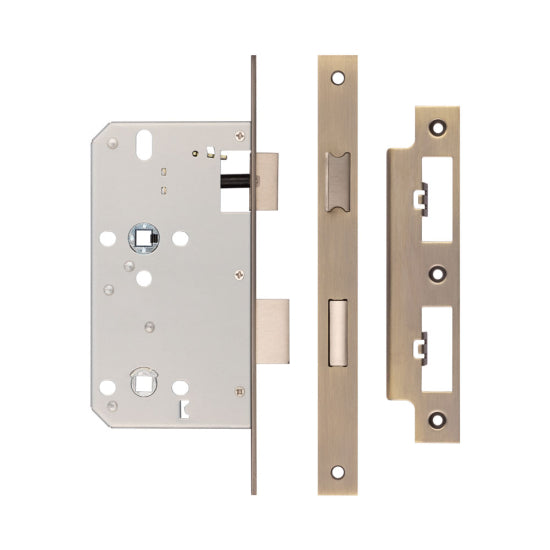

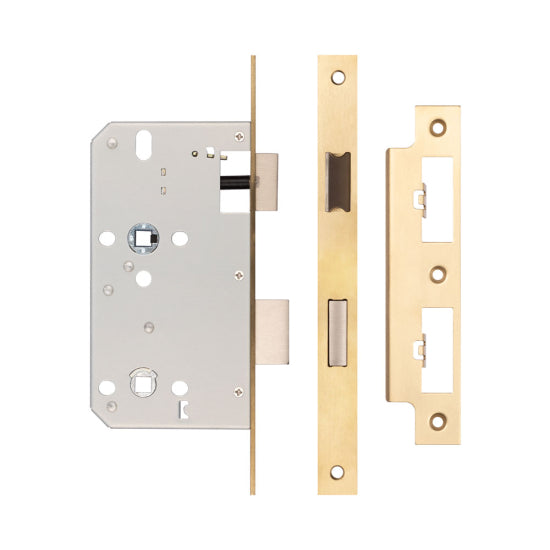

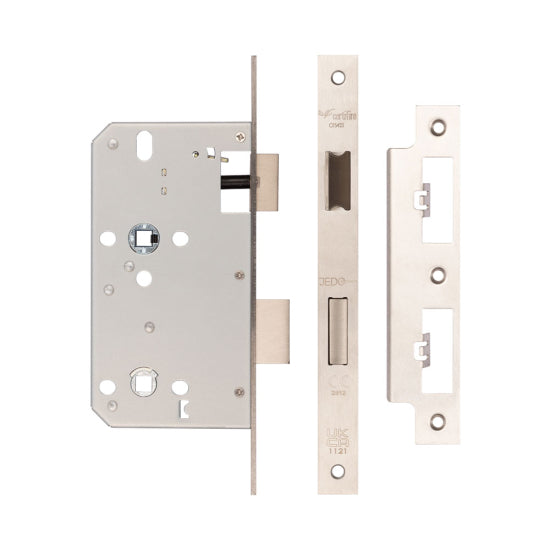

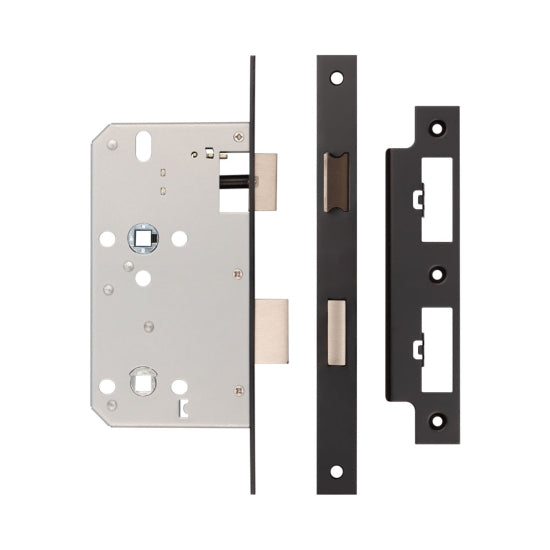

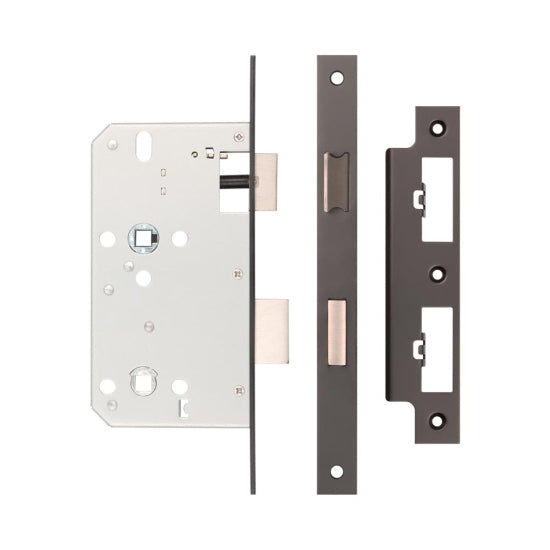

78mm Din Bathroom 60mm Backset

The Frelan JL-DB60 Din Bathroom Lock delivers dependable performance for commercial washrooms.

Built around a robust Grade 304 Stainless Steel case, it is Certifire approved and FD30/60 fire rated.

Available in Square or Radius Forend.

• Material Grade: 304 Stainless Steel
• Sprung
• Fire Rating: FD30/60
• Certifire
• BS EN 12209
• UKCA/CE Marked
• Corrosion Grade: 3
• Mechanical Warranty: 15 Years
• Use: Internal / External (Residential/Commercial)
• Suitable Door Thickness: 35-54mm

Dimensions:

• Case Height: 235mm
• Backset: 60mm
• Forend Width: 22mm
• Forend Height: 145mm

To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 9 & GRA 9.2)

3-5 Working Day Delivery
