Description :

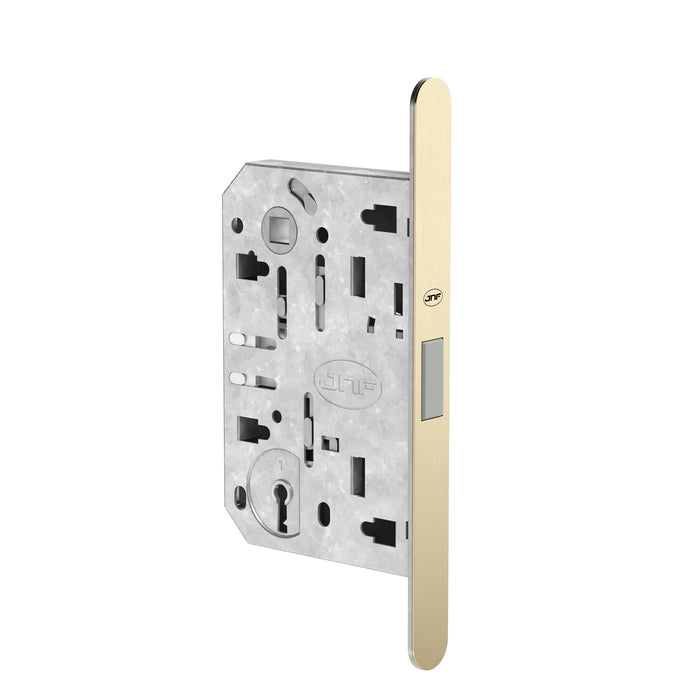

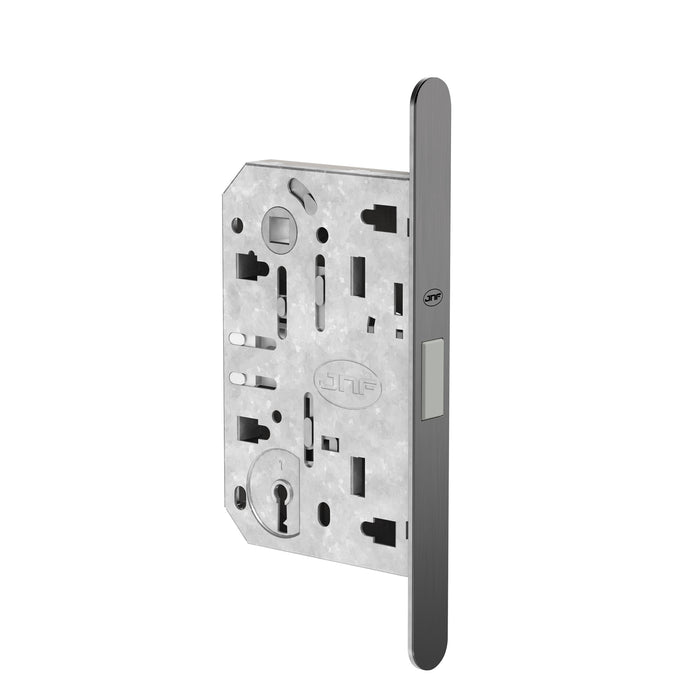

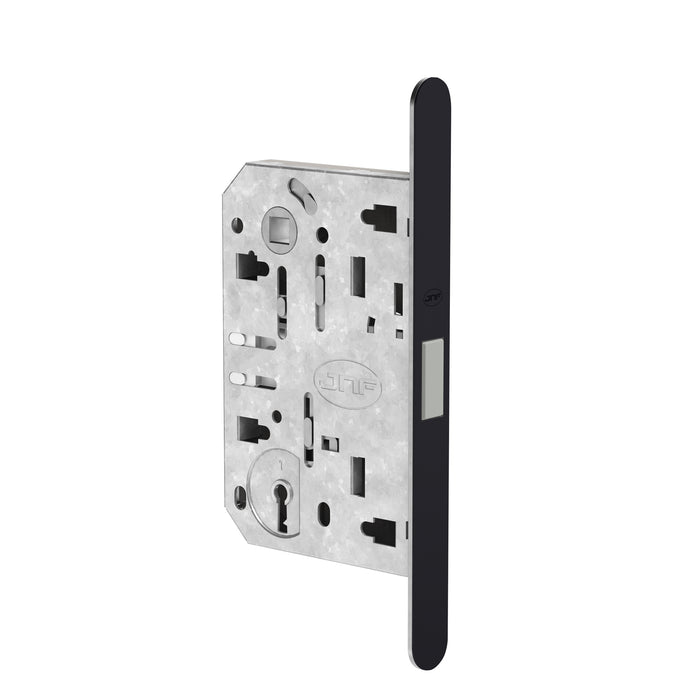

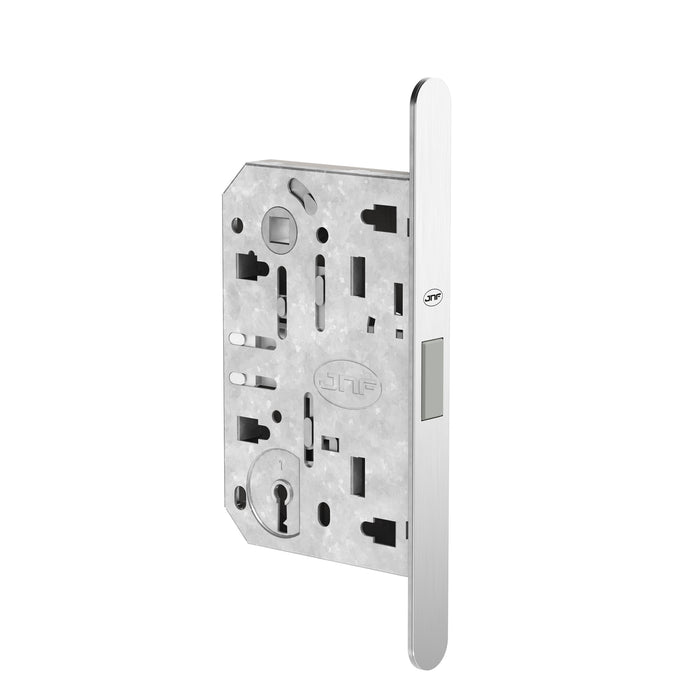

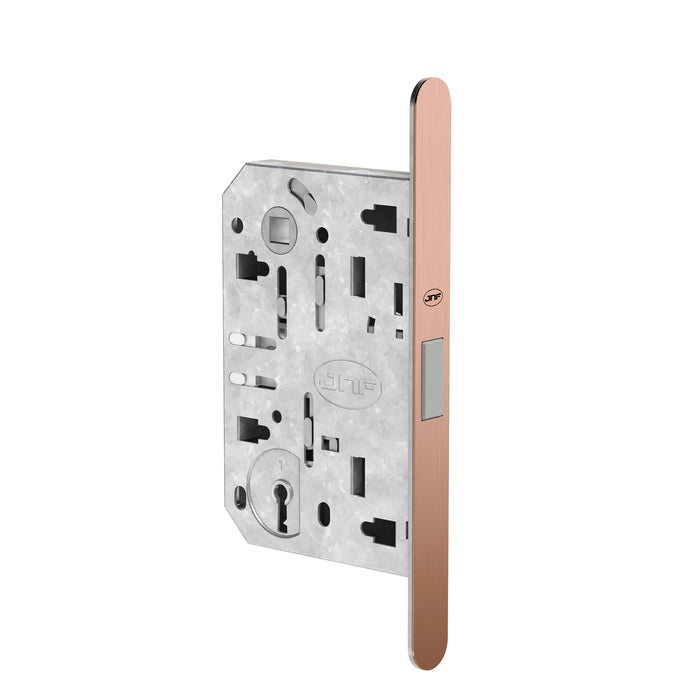

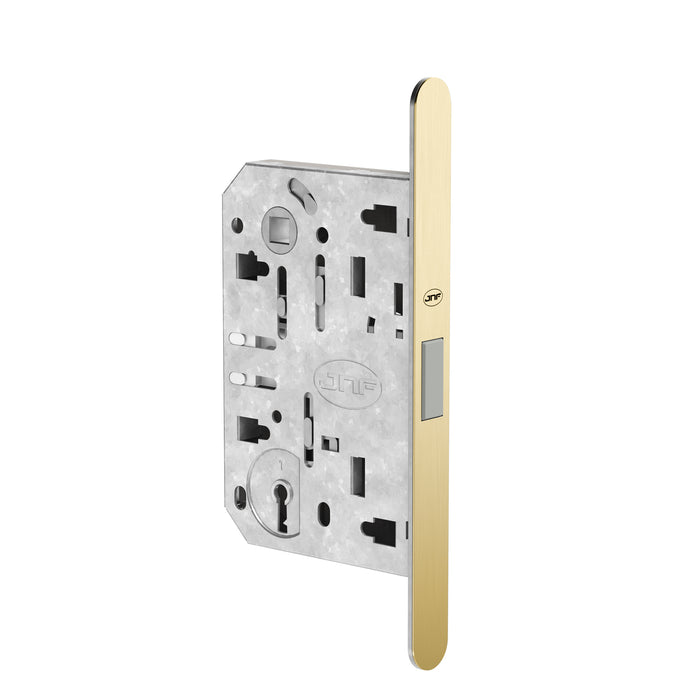

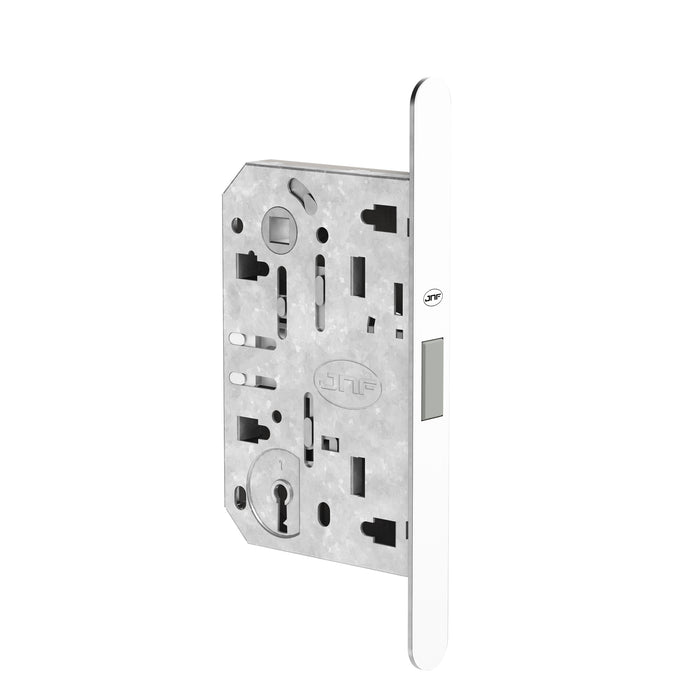

Magnetic Mortise Door Lock with normal key with hidden fixing screws. Key with 6 combinations.

The same cut out in the door allows the application of 3 models of locks with different functions. The machining of the door is symmetrical, which makes it reversible.

Magnetic strike plate, reversible and adjustable by position.

The gap of the strike plate to the magnetic bolt is adjustable in +1mm/-1mm by the rotation of 180°

1. 8x8 spindle with path limitation
2. Handle fixing holes
3. Closed lock case
4. 18mm front plate
5. Magnetic latch
6. Reversible and adjustable strike plate

Measure: 50mm / 60mm

Material: EN 1.4301

Finish: Other Finishes Available Upon Request

Availability:

Lead time 2+ Weeks from the date of order
