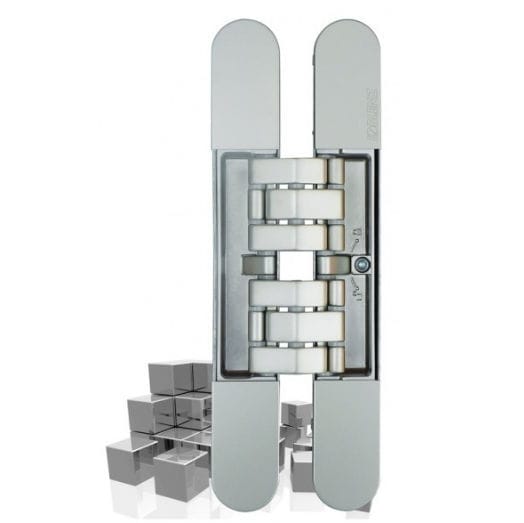

Krona Koblenz Kubi7 Adjustable Concealed Multiaxial Hinges K7200

Krona Koblenz Adjustable Concealed Multiaxial Hinges K7200

Sold : each

Availability

3-6 weeks from date of order

Product Information

Usage: Commercial and residential doorsets

Weight Rating

200kg - 2 Hinges

Material

Zamak body, hardened steel pins, aluminium covers, teflon bearing

Minimum Door Thickness

40mm

A concealed hinge for flush doors with wooden, steel and aluminium frames. Load capacity up to 200 kg, 180° opening angle with the minimum door thickness of 40mm. Wear-resistant bushings, lubrication/maintenance not required, reversible for right- and left-hand doors RH/LH.

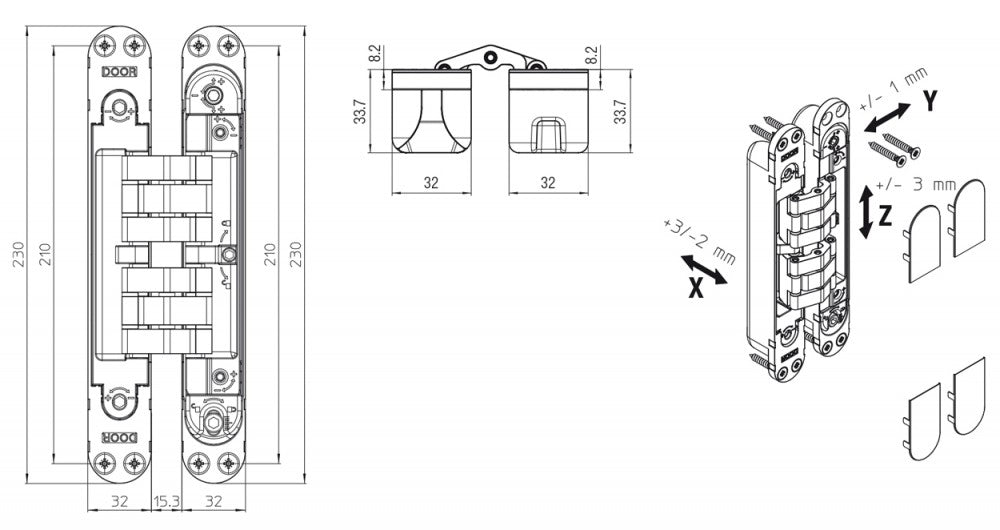

3D-adjustable, all adjustments are indipendent, tool-aided and self-loading. Adjustments: horizontal + 3,0/-2,0 mm, vertical +/- 3,0 mm, depth +/- 1,0 mm. Finishes

Country of Origin: Italy

NON FIRE RATED
