Krona Koblenz Kubica Kubicenter Hybrid Adjustable Concealed Multiaxial Hinges K6400

Krona Koblenz Kubica Kubicenter Hybrid Adjustable Concealed Multiaxial Hinges K6400

Sold : each

Availability

3-6 weeks from date of order

Imperial Bronze / Black - These finishes are speical order - please get in touch to discuss your needs

Product Information

Usage: Commercial and residential doorsets

Suitable for furniture use

Weight Rating

45kg - 3 Hinges

30kg - 2 Hinges

Material

Zamak

Minimum Door Thickness

30mm

Additional Information

A concealed hinge for flush doors and usual rebate doors, with a fixing screw centering device. It fits the furniture doors with gaps and overlaps, and the frames made of wood, steel and aluminium. Load capacity up to 30kg with 2 hinges fitted, 45kg with three hinges. 180 degree opening angle with the minimumdoor thickness of 30mm. Wear-resistant bushing, lubrication/maintenance not required. Reversible for right and left hand doors.

3D-adjustable, all adjustments are independent, tool aided and self loading.

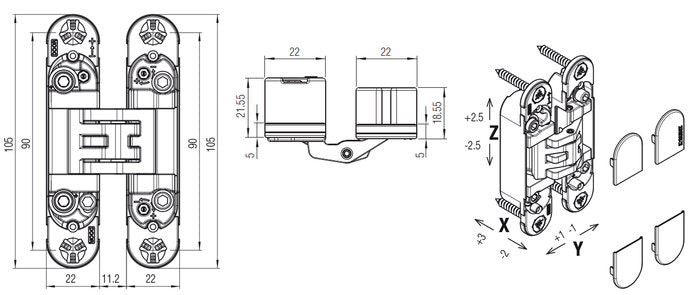

Adjustments: horizontal + 3,0 / -2,0mm, vertical +/- 2,5mm, depth +/- 1,0mm

Cover caps are supplied with this product
