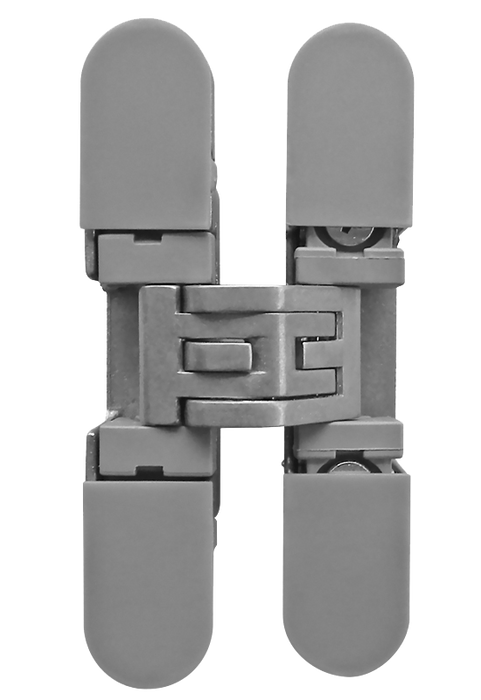

Krona Koblenz Kubikina Adjustable Concealed Multiaxial Furniture Hinge K6100

Krona Koblenz Kubikina Adjustable Concealed Multiaxial Furniture Hinge K6100

Sold : each

Product Information

Usage: Furniture

Weight Rating

19kg - 4 Hinges

14kg - 3 Hinges

10.5kg - 2 Hinges

Material

Zamak

Minimum Door Thickness

18mm

Maximum Door Thickness

600mm

Additional Information

A concealed hinge for furniture doors with mounting inside and outside the box. Load capacity up to 10.5 kg with 2 hinges, 14 kg with three hinges, 19kg with 4 hinges. 180° opening angle with the minimum door thickness of 18mm. Reversible for right- and left-hand doors RH/LH.

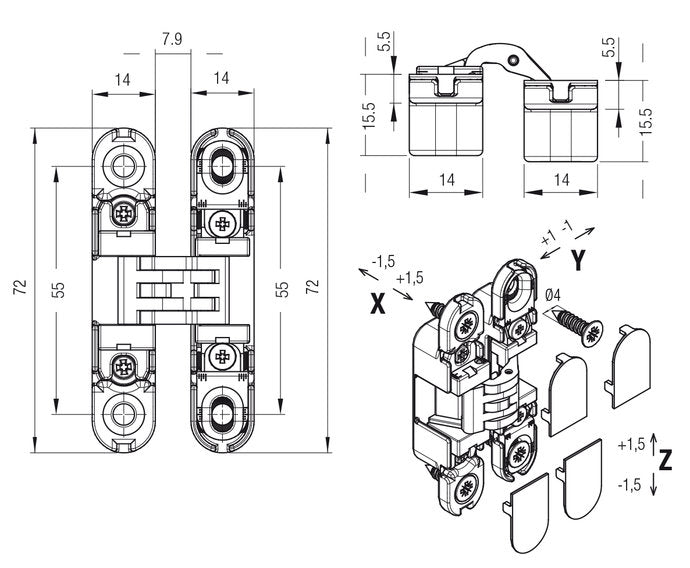

3D-adjustable, all adjustments are indipendent. Adjustments: horizontal +/- 1,5 mm, vertical +/- 1,5 mm, depth+/- 1,0 mm.
